ADInstruments Connection Kit
$299.00
ADInstruments Connection Kit
Description

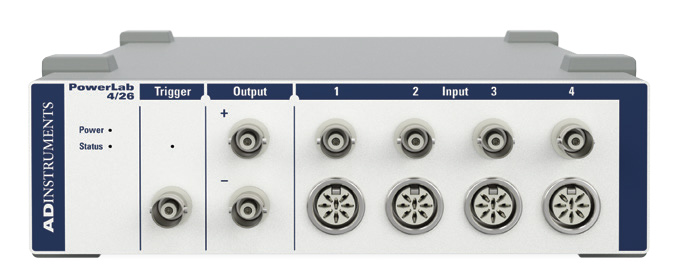

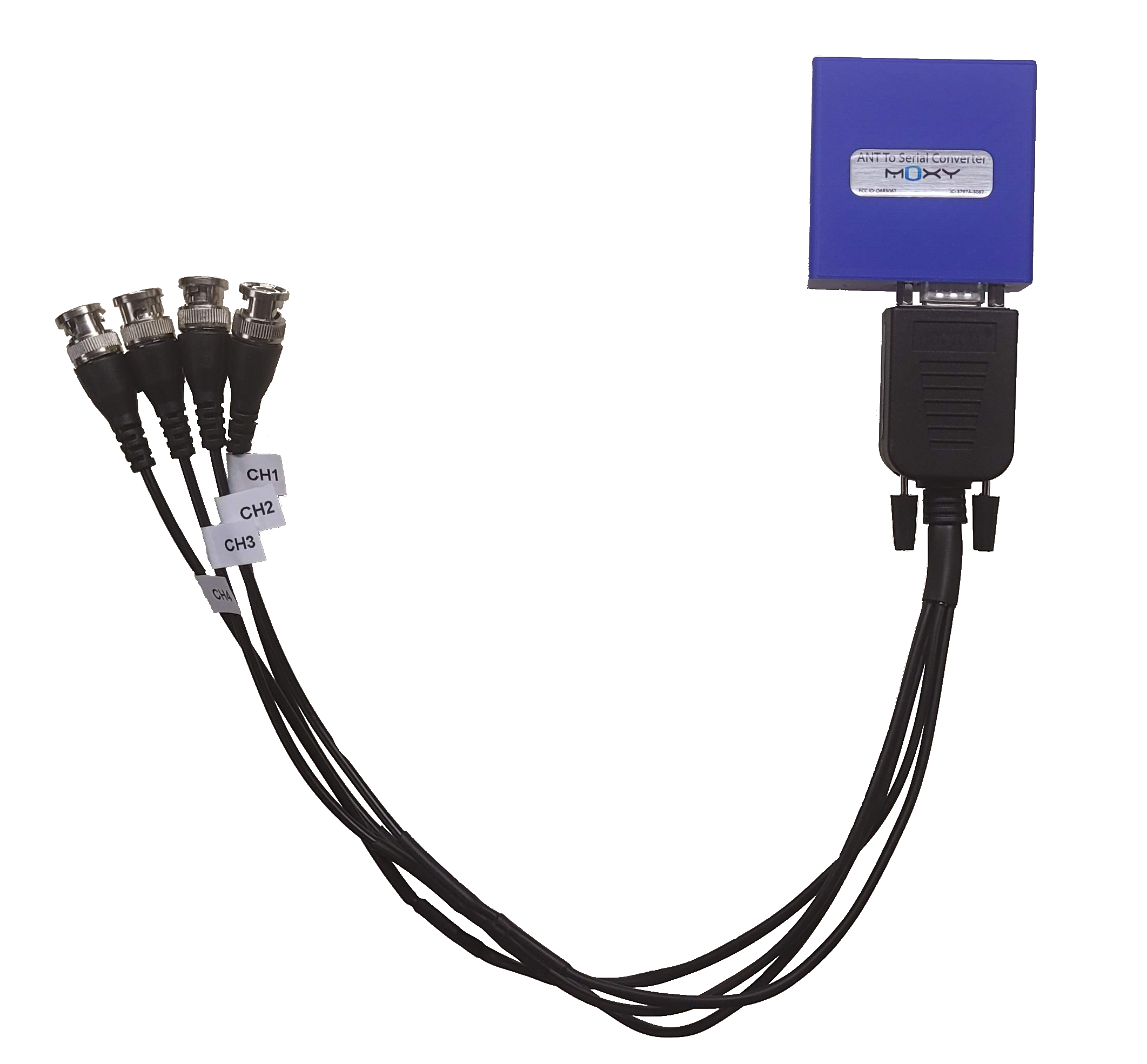

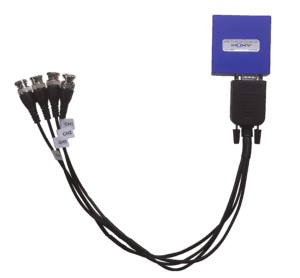

This kit includes the Moxy ANT to Serial/Analog Converter and the cable required to connect it to an ADInstruments PowerLab.
The system has 4 output channels. Each channel can be configured for the following ANT+ profile inputs.
- Muscle Oxygen – SmO2
- Muscle Oxygen – THb
- Heart Rate
- Bicycle Speed
- Bicycle Cadence
- Combined Bicycle Speed and Cadence
- Cycling Power
- Stride based Speed and Distance
- FEC
It can support 2 Moxy sensors with SmO2 and THb outputs or 4 Moxy sensors with only SmO2 outputs.
Once the device is configured, it only requires power via its USB micro input to read the ANT+ signals and operate the analog outputs.
The following user guide describes how to configure the device. If the kit is ordered along with Moxy sensors, it can be preconfigured so it works out of the box.
